Cutting Tools

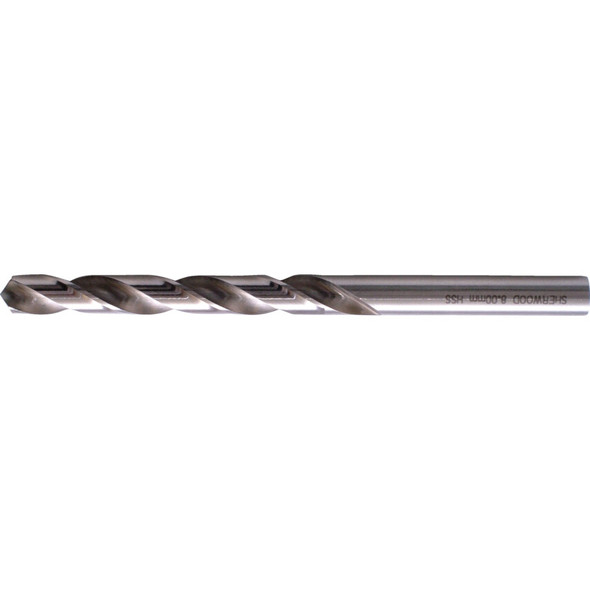

Series J100 - MetricGeneral purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10°-20°,...

MetricManufactured to BS 328 : Part 2 : 1986, DIN 333, ISO 2540. • Countersink Angle 60°• Trade Size 8• Radius 4.25mm• Cutting Style Bell• Body Diameter 8mm

Carbide Straight Shank Stub DrillsMetricFor drilling into steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous materials and abrasive plastic.Point angle: 118°, helix angle: 30°, tolerance of diameter: h7, tolerance...

Series J102 - MetricGeneral purpose drills for drilling a wide variety of metallic and non-metallic materials.Point angle: 118°. Tolerance of diameter: h7. Tolerance of shank: h6. Supply unit. All diameters - 1 pce.Manufacturing Standard: BS 328, DIN...

HSS 90° Straight Shank Spotting DrillsSeries C520Special drill for accurate and fast spotting on NC machines, jig drills and other capital-intensive boring machines. For countersinking and chamfering of tapping holes in one operation. Only suitable...

HSS 120° Straight Shank Spotting DrillsSeries C530Special drill for accurate and fast spotting on NC machines, jig drills and other capital-intensive boring machines. For countersinking and chamfering of tapping holes in one operation. Only suitable...

Set of 6 sizes: 8mm, 1mm, 12.5mm, 16mm, 2mm & 25mm. Supplied in wooden box.

For producing clean holes in sheet metal and other thin-walled materials. Efficient cutting geometry, no pre-drilled pilot hole and the diameter of the finished hole is infinitely variable within the range of each drill, according to depth of feed...

Short Series - Metric.Bright finish. Flute type: 30° helix. Manufactured to BS 122: Part 4: 1980.METRIC TOLERANCES:Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033.Diameter: Over 3.00 ~ up to 6.00. Tolerance:+ 0.020 -0.038.Diameter: Over 6.00 ~ up to...

Regular Series Type E411T.Used for profile milling and producing open slots. Bright finish. Flute type : 30° helix.Manufactured to BS 122 : Part 4 : 1980.Metric Tolerances:Diameter: up to 38.00mm. Tolerance: +0.0630, -0.0130.Diameter: Over 38.00mm...

Short Series S210T - Metric.Used for milling keyways and slots. Bright finish. Flute type: 30° helix. Manufactured to BS 122: Part 4: 1980.METRIC TOLERANCES:Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033.Diameter: Over 3.00 ~ up to 6.00...

Short Series E410T.Used for profile milling and producing open slots. Bright finish. Flute type : 30° helix.Manufactured to BS 122 : Part 4 : 1980.METRIC TOLERANCES:Diameter: up to 38.00mm. Tolerance: +0.0630, -0.0130.Diameter: Over 38.00mm ~...

Short Series Type B210T.Used for die sinking, slot milling and profile milling. Bright finish. Flute type: 30° helix.Manufactured to BS 122 : Part 4 : 1980.Metric Tolerances:Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033;Diameter: Over 3.00 ~ up to...

Long Series E430T.Used for profile milling and producing open slots. Bright finish. Flute type: 30° helix. Manufactured to BS 122 : Part 4 : 1980.Metric Tolerances:Diameter: up to 38.00. Tolerance: +0.0630, -0.0130.Diameter: Over 38.00. Tolerance: +0...

HSS Straight Flute UNC (Unified Coarse) Ground Thread Tap SetSherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and...

IS0 529 - Straight Flute Individual Sizes - Second.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous...

IS0 529 - Straight Flute Individual Sizes - Plug.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous...

IS0 529 - Spiral Point/Gun Nose • Finish/Coating Steam Tempered• Pitch 9• Thread Size 7/8"• Material Grade M2• Square Width 12.5mm

ISO 529.For use in diestocks to produce external screw threads. • Class of Fit 2A• Thread Size 7/8" x 14• Material High Speed Steel• Thread Standard UNF

Short Series S210T.Used for milling keyways and slots. Bright finish. Flute type: 30° helix. Manufactured to BS 122: Part 4: 1980.INCH TOLERANCES:Diameter: up to 1/2". Tolerance: +0.0630, -0.0013.Diameter:Over 1/2". Tolerance: +0.1250, -0.0015...

Short Series E410T.Used for profile milling and producing open slots. Bright finish. Flute type : 30° helix.Manufactured to BS 122 : Part 4 : 1980.INCH TOLERANCES:Diameter: up to 1/2". Tolerance: +0.0025, -0.0005.Diameter: Over 1/2" ~. Tolerance: +0...

Sherwood machine reamers are used to produce a close tolerance surface finish by enlarging pre-drilled holes to a finished size. Manufactured from HSS with a 45 bevelled head. Conform to BS 122 : Part 2 and BS 328 Part 4.INCH TOLERANCES:Diameter: ~ up to...

Series J100 - InchGeneral purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10°-20°,...

Series E100 HSS Straight Shank Extra Length Drills - InchFor steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite.Point angle: 118°. Helix angle: normal.Web thickness: standard.Relief angle:...

Sherwood Taper Pin hand reamers are used to produce a close tolerance surface finish in taper holes to allow the fitting of hardened and ground taper pins in the building of jigs, fixtures and dies. Manufactured to BS 328 : Part 4 : 199 and DIN 9A...

Left hand spiral flute, right hand cutting. Manufactured to BS 122.INCH TOLERANCES:Diameter: ~ up to 1/8". Tolerance: High +0.0003, Low -0.0001.Diameter: Over 1/8" ~ up to 15/64". Tolerance: High +0.0004, Low -0.0002.Diameter: Over 15/64" ~ up to 3/8"...

HSS Straight Flute UNF (Unified Fine) Ground Thread Tap SetSherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and...

IS0 529 - Straight Flute Individual Sizes - Second.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous...

IS0 529 - Straight Flute Individual Sizes - Plug.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous...

£37.49   Inc VAT (20%) Trade prices available. Apply Here Qty Delivery: 1-2 days Add to Favourites Description Spiral Point/Gun Nose.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general...

Spiral FluteThread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many...

BS 1127.For use with spanners to clean and repair existing external screw threads. • Dimensions Standard BS 1127• Hex Width 1.10in.• Material High Speed Steel• Thread Size  7/16" x...

ISO 529.For use in diestocks to produce external screw threads. • Class of Fit 2A• Thread Size 7/16" x 20• Material High Speed Steel• Thread Standard UNF

ISO 529.For use in diestocks to produce external screw threads. • Class of Fit 2A• Thread Size 7/16"x20• Material High Speed Steel• Thread Standard UNF

IS0 529 - Straight Flute - Sets of Three.1 each, taper, second and plug lead.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast...

IS0 529 - Spiral Point/Gun Nose • Thread Standard BSF• Shank Diameter 8mm• Dimensions Standard ISO 529• Square Width 6.3mm• Tap Type Spiral Point
