EZB002

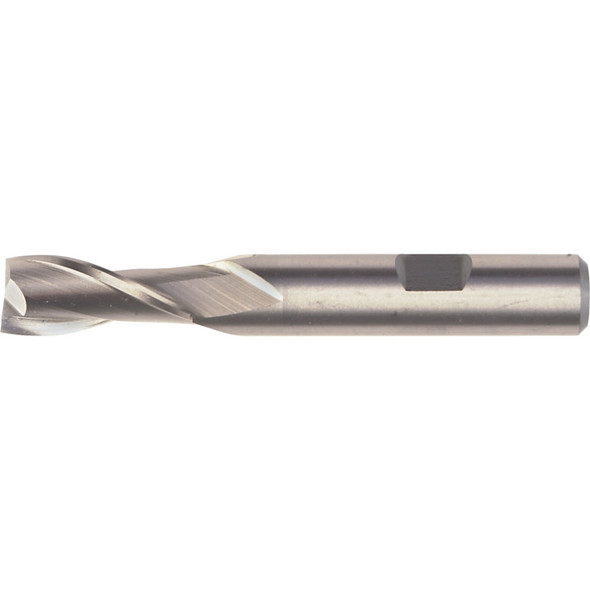

Series 09 - Regular SeriesDimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B.Shank cutting diameter:3-6mm to +0.04 -0.0.8-20mm to +0.05 -0.0.HSS-Co 8% Uncoated (for general production machining)TiCN Coated (extends cutter life and improves...

Series 06 - Regular Series, TiCN CoatedDimensions to DIN 844 Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material...

Series 02 - Regular Series, TiALN CoatedDimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material...

Series 02 - Regular SeriesDimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Uncoated (for general production machining)HSS-Co 8% TiCN Coated (extends cutter life and improves work material...

Series 05 - Short Series, TiCN CoatedDimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material surface finish)TiALN Coated...

Series 05 - Short SeriesDimensions to DIN 327. Centre cutting. Cutting diameter to e8. Shank diameter to h6.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material surface finish)TiALN Coated (dissipates and...

Series 01 - Short SeriesDimensions to DIN 327. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and...

Series 11 - Short SeriesDimensions to DIN 327. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and...

Series 10 - Long Series, TiALN CoatedDimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B.Shank cutting diameter:3-6mm to +0.04 -0.0.8-20mm to +0.05 -0.0.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN...

Series 03 - Long SeriesDimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material surface finish)...

Series 36 - Regular SeriesDimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835D. Shank cutting diameter to +0.04 -0.0.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material surface finish)TiALN...

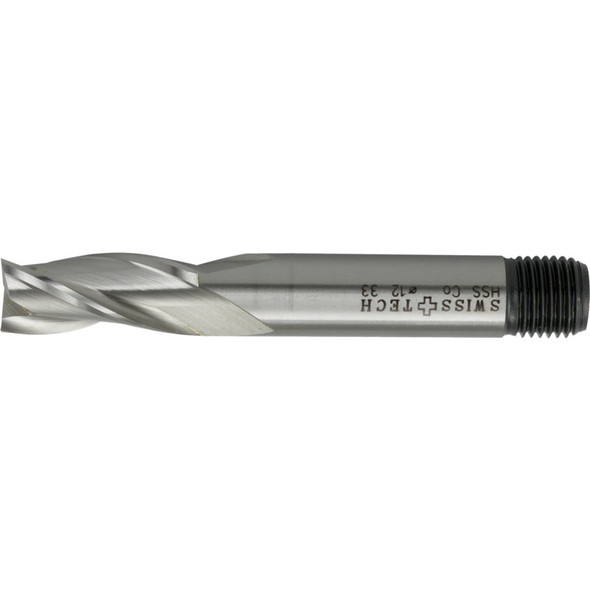

Series 33 - Regular Series, TiCN CoatedDimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material...

Series 33 - Regular Series, TiCN CoatedDimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material...

Series 29 - Regular Series, TiCN CoatedDimensions to DIN 844. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material...

Series 28 - Short Series, TiCN CoatedDimensions to DIN 327. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends...

Series 15 - Regular LengthDimensions to DIN 844. Centre cutting. Weldon shank to DIN 1835B. Shank cutting diameter to +0.04 -0.0.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves...

90° Point - MetricSpecial drill for accurate and fast spotting on NC machines, jig drills and other capital-intensive boring machines. For countersinking and chamfering of tapping holes in one operation. Only suitable for shallow depth drilling.5...

Series 95 - RegularCentre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions to DIN 844.The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds...

Series 97 - RegularCentre cutting. Weldon shank to DIN 1835B. Shank diameter to h6. Dimensions toDIN 844.The latest enhancement of the SwissTech range, these cutters deliver excellent performance when cutting difficult materials, even at high speeds...

6 Piece SetsDimensions to DIN 844. Cutting diameter to js12. Shank diameter to h6. Contents: 3, 4, 5, 6, 8 and 10mm.SwissTech carbide cutters are specifically engineered to be used in CNC machine centres. The rigidity and integrity of the machine tool is...

Spiral Point/Gun Nose - UNF• HSS-EV Oxidised Finish• UNF - Unified National Fine• Bright Finish• Taper lead to DIN form B (3.5 x P to 5.5 x P)• Tapping tolerance to 2B• Manufactured to DIN 374• For through holes•...

Spiral Flute - BSP - British Standard Pipe Bright FinishDIN 5156. For blind holes. Taper lead to DIN form C (3 x P). Tapping tolerance: Spiral flute to 6H. • Helix Angle 40°• Dimensions Standard DIN 5156• Shank...

Spiral Point/Gun Nose - BSP• HSS-EV Oxidised Finish• BSP - British Standard Pipe• Bright Finish• Taper lead to DIN form B (3.5 x P to 5.5 x P)• Tapping tolerance to 2B• Manufactured to DIN 5156• For through holes•...

Spiral Point/Gun Nose -• HSS-EV Oxidised Finish• UNC - Unified National Coarse• Bright Finish• Taper lead to DIN form B (3.5 x P to 5.5 x P)• Tapping tolerance to 2B• Manufactured to DIN 371/376• For through holes•...

Spiral Flute (BLF) - UNCHSS-EV Oxidised Finish. For shorter blind holes. Taper lead to DIN form C (3 x P). Tapping tolerance to 6H. Manufactured to DIN 371/376.UNC - Unified National Coarse Bright FinishTapping tolerance to 2B. • Helix...

Series 48 - 3 Flute - Short Series, TiCN CoatedCentre cutting.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material surface finish)TiALN Coated (dissipates and resists heat, reduces surface friction...

Series 28 - Short Series, TiCN CoatedDimensions to DIN 327. Centre cutting. Threaded shank to DIN 1835B. Cutting diameter to e8. Shank diameter to h6.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends...

Centre cutting.To Manufacturers Standards.Cutting diameter to h10.Shank diameter to h6.Carbide Q-Coat.Series 75 regular NeckCarbide Q-Coat • Overall Length 45mm• Material Application Aerospace Alloys• Number of...

Centre cutting.To Manufacturers Standards.Cutting diameter to h10.Shank diameter to h6.Carbide Q-Coat.Series 75 regular NeckCarbide Q-Coat • Overall Length 45mm• Material Application Aerospace Alloys• Number of...

Series 50 - 4 Flute - Short SeriesDimensions to DIN 6535 HA. Centre cutting.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN...

Series 50 - 4 Flute - Short SeriesDimensions to DIN 6535 HA. Centre cutting.Available in HSS-Co 8% Uncoated (for general production machining), HSS-Co 8% TiCN Coated (extends cutter life and improves work material surface finish) and HSS-Co 8% TiALN...

Series 66 - Short SeriesDimensions to DIN 844. Centre cutting. To Manufacturers standards. Cutting diameter to h10. Shank diameter to h6. EMQ-4PS/L Carbide Q-Coat.'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when...

Series 48 - 3 Flute - Short Series, TiCN CoatedCentre cutting.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material surface finish)TiALN Coated (dissipates and resists heat, reduces surface friction...

Series 48 - 3 Flute - Short SeriesDimensions to DIN 6535 HA. Centre cutting.Uncoated (for general production machining)TiCN Coated (extends cutter life and improves work material surface finish)TiALN Coated (dissipates and resists heat, reduces surface...

Series 48 - 3 Flute - Short SeriesDimensions to DIN 6535 HA. Centre cutting.Uncoated (for general production machining),TiCN Coated (extends cutter life and improves work material surface finish)TiALN Coated (dissipates and resists heat, reduces surface...

Series 45 - 2 Flute - Short SeriesDimensions to DIN 6535 HA. Centre cutting.CarbideUncoated (for general production machining),TiCN Coated (extends cutter life and improves work material surface finish)TiALN Coated (dissipates and resists heat, reduces...

Series 53 - Short Series, TiCN CoatedCentre cutting. To Manufacturers Standards.Available as Carbide Uncoated (for general production machining) or TiCN Coated (extends cutter tool life and improves work material surface finish). • Cutting...

Series 68 - Long SeriesDimensions to DIN 844. Centre cutting. To Manufacturers Standards. Cutting diameter to h10. Shank diameter to h6. EMQ-4PS/L Carbide Q-Coat.'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when...

Series 62 - Long SeriesDimensions to DIN 844. Centre cutting. To Manufacturers Standards. Cutting diameter to h10. Shank diameter to h6. SDQ-2PS Carbide Q-Coat.'Q-Coat' Coating has been specifically developed to give carbide cutters the 'edge' when faced...

Centre cutting.To Manufacturers Standards.Cutting diameter to e8.Shank diameter to h6.SBQ-2PR Carbide Q-CoatSeries 78 - Regular Length SBQ-2PR Carbide Q-Coat. • Material Carbide• Reach Length N/Amm• Shank...
