EZB002

IS0 529 - Straight Flute Individual Sizes - Second • Tap Type Straight Flute• Pitch 0.7• Thread Size M4• Finish/Coating Bright• Material High Speed Steel

HSS Ground Thread TapsMetric CoarseFlutelessDimensions to ISO 529 • Finish/Coating Bright• Overall Length 53mm• Dimensions Standard ISO 529• Material High Speed Steel• Thread...

IS0 529Straight Flute Individual Sizes.(1) Diameter and pitch not mentioned in ISO. • Material Grade M2• Thread Size M4• Overall Length 53mm• Class of Fit 6H• Chamfer Taper

IS0 529Straight Flute Individual Sizes.Sets of Three: 1 each, taper, second and plug lead. • Tap Type Straight Flute• Thread Standard Metric Fine• Finish/Coating Bright• Thread Length 13mm

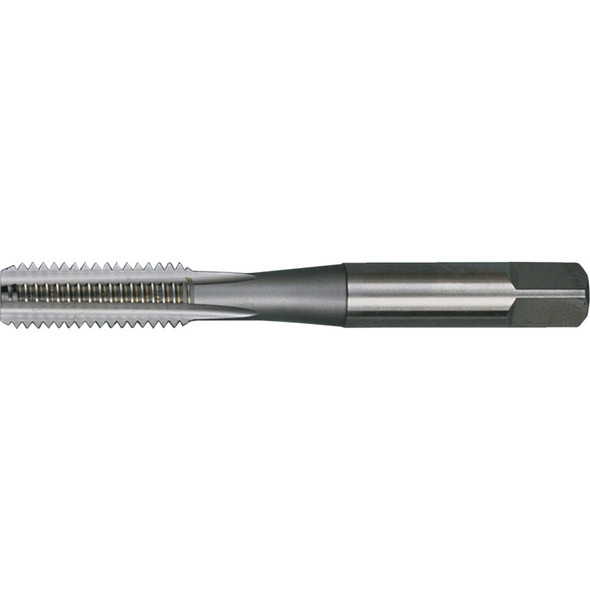

IS0 529 - Straight Flute Individual Sizes - Plug.Thread Forms are Class 2 medium fit tolerance. (1) Diameter and pitch not mentioned in ISO.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some...

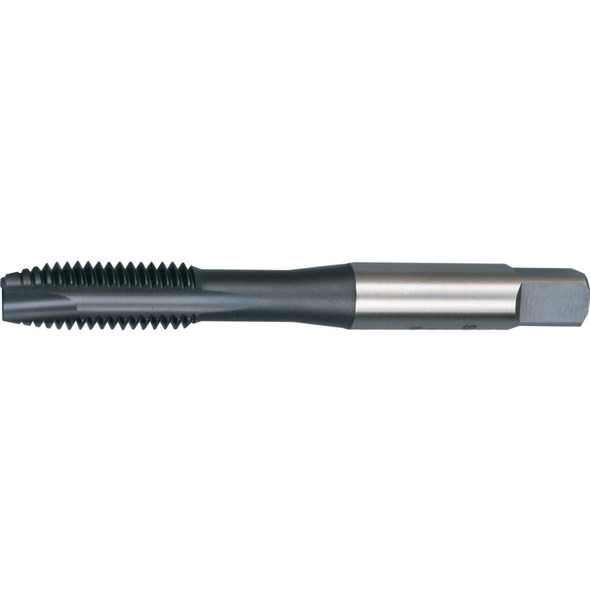

IS0 529 - Spiral Flute.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.Manufactured with precision...

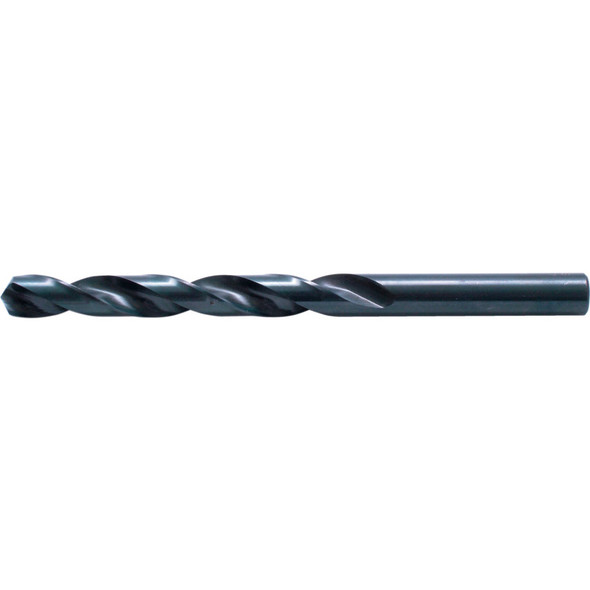

Series J100 - MetricGeneral purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10° - 20°,...

Designed for close tolerance hole location. Suitable for continuous production on aluminium, plastics, free cutting steels, cast iron, titanium and some aerospace materials. The stability of carbide makes the tool more rigid and less likely to deflect,...

Series E100 HSS Straight Shank Extra Length DrillsMetricGeneral-purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard,...

Series E100 HSS Straight Shank Extra Length DrillsMetricGeneral-purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard,...

Series E100 HSS Straight Shank Extra Length DrillsMetricGeneral-purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard,...

Series E100 HSS Straight Shank Extra Length DrillsMetricGeneral-purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard,...

Metric SeriesDesigned with spiral flutes and various lengths and forms to give high quality centre holes that suit most applications. 60° inclusive angle.Manufactured to BS 328 : Part 2 : 1986, DIN 333A, ISO 866, ISO 2540, ISO 2541...

HSS 135° Straight Shank (SCD) Stub Centring DrillsSeries S510 - MetricStub centering drills designed for sheet metal drilling and spot centering operations with a strong supporting web and a reduced chisel edge to help penetration...

Manufactured to DIN 212.Tolerances (to H7)Diameter: ~ up to 5.50. Tolerance: +0.004, -0.000.Diameter: Over 5.50 ~. Tolerance: +0.005, -0.000. • Shank Type Straight• Number of Flutes 6• Cutting Direction Right...

Used to produce a close tolerance surface finish by enlarging pre-drilled holes to a finished size. Manufactured from HSS with a 45 bevelled head. Manufactured to BS 328-4.TOLERANCES (to H7):Diameter: ~ up to 3.00. Tolerance: +0.008, -0.007.Diameter:...

Series T100 HSS Taper Shank Drills - MetricTo drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°, helix angle: normal, relief angle: normal, tolerance...

Metric.Used to produce a close tolerance surface finish by hand in almost any environment i.e. on site or in a workshop. Manufactured to BS 328 : Part 4 : 1990 and DIN 206B.METRIC TOLERANCES:Diameter: ~ up to 3.00. Tolerance: +0.008, -0.007.Diameter:...

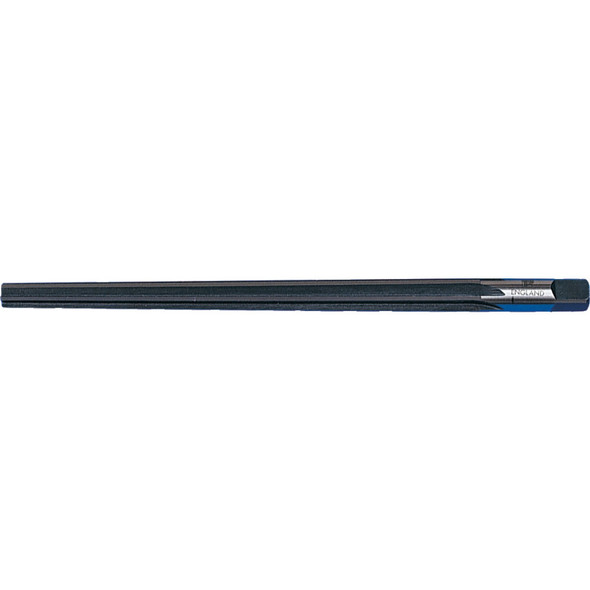

Metric.Used to produce a close tolerance surface finish in taper holes to allow the fitting of hardened and ground taper pins in the building of jigs, fixtures and dies. Manufactured to BS 328 : Part 4 : 1990 and DIN 9A.METRIC TOLERANCES:Diameter: Over 1...

Left hand spiral flute, right hand cutting. Manufactured to BS 328-4.METRIC TOLERANCES (to H7):Diameter: ~ up to 3.00. Tolerance: High +0.008, Low -0.004.Diameter: Over 3.00 ~ up to 6.00. Tolerance: High +0.010, Low -0.005.Diameter: Over 6.00 ~ up to 10...

Series L100 HSS Straight Shank Long Series DrillsMetricGeneral purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°,...

Series L100 HSS Straight Shank Long Series DrillsBright Finish - MetricGeneral purpose drills to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°, helix...

Series J400 HSS Drill BlanksMetricJobber length blank hardened and ground all over. Accurately ground without back taper. Diameter tolerance: h8. Manufactured to DIN 338. • Standards Met DIN 338• Overall...

MetricManufactured to BS 328 : Part 2 : 1986, DIN 333, ISO 2540. • Countersink Angle 60°• Trade Size 4• Radius 2.12mm• Cutting Style Bell• Body Diameter 4mm

Carbide Straight Shank Stub DrillsMetricFor drilling into steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous materials and abrasive plastic.Point angle: 118°, helix angle: 30°, tolerance of diameter: h7, tolerance...

HSS 90° Straight Shank Spotting DrillsSeries C520Special drill for accurate and fast spotting on NC machines, jig drills and other capital-intensive boring machines. For countersinking and chamfering of tapping holes in one operation. Only suitable...

Produce good quality holes in a wide variety of materials, using either a bench drill or light pedestal drilling machine. Each tool cuts parallel holes in a range of specific sizes. For material up to 1/8” (3mm) thick. • Shank...

Three piece stepped cone drill set manufactured from high speed steel, resulting in long tool life and extra durability. Each step produces specific sized, parallel holes, with the maximum material thickness being determined by the length of step. The...

Produce good quality holes in a wide variety of materials, using either a bench drill or light pedestal drilling machine. Each tool cuts parallel holes in a range of specific sizes. For material up to 1/8” (3mm) thick. • Shank...

Produce good quality holes in a wide variety of materials, using either a bench drill or light pedestal drilling machine. Each tool cuts parallel holes in a range of specific sizes. For material up to 1/8” (3mm) thick. • Shank...

Produce good quality holes in a wide variety of materials, using either a bench drill or light pedestal drilling machine. Each tool cuts parallel holes in a range of specific sizes. For material up to 1/8” (3mm) thick. • Shank...

Produce good quality holes in a wide variety of materials, using either a bench drill or light pedestal drilling machine. Each tool cuts parallel holes in a range of specific sizes. For material up to 1/8” (3mm) thick. • Shank...

Special drill for accurate and fast spotting on NC machines, jig drills and other capital-intensive boring machines. For countersinking and chamfering of tapping holes in one operation. Only suitable for shallow depth drilling.90 Point Set Contents: 4...

Short Series - Metric.Bright finish. Flute type: 30° helix. Manufactured to BS 122: Part 4: 1980.METRIC TOLERANCES:Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033.Diameter: Over 3.00 ~ up to 6.00. Tolerance:+ 0.020 -0.038.Diameter: Over 6.00 ~ up to...

Regular Series Type E411T.Used for profile milling and producing open slots. Bright finish. Flute type : 30° helix.Manufactured to BS 122 : Part 4 : 1980.Metric Tolerances:Diameter: up to 38.00mm. Tolerance: +0.0630, -0.0130.Diameter: Over 38.00mm...

Regular Series Type 5321T.Bright finish. Flute type: 30° helix. Manufactured to BS 122: Part 4: 1980.Metric Tolerances:Diameter: up to 38.00mm. Tolerance: +0.0630, -0.0130.Diameter: Over 38.00mm. Tolerance: +0.1250, -0.0000. • Shank...

Long Series.Non-centre cutting, used for profile milling, milling keyways and producing open slots. Surface treatment: bright finish. Flute type: 30° Helix. Overall dimensions to DIN 844. Plain shank to DIN 1835A. • Shank Type Plain...

Regular Length.Non-centre cutting, used for profile milling, milling keyways and producing open slots. Surface treatment: bright finish. Flute type: 30° Helix. Overall dimensions to DIN 844. Plain shank to DIN 1835A. • Cutter...

Short Series S210T - Metric.Used for milling keyways and slots. Bright finish. Flute type: 30° helix. Manufactured to BS 122: Part 4: 1980.METRIC TOLERANCES:Diameter: ~ up to 3.00. Tolerance: +0.013 -0.033.Diameter: Over 3.00 ~ up to 6.00...

Short Series E410T.Used for profile milling and producing open slots. Bright finish. Flute type : 30° helix.Manufactured to BS 122 : Part 4 : 1980.METRIC TOLERANCES:Diameter: up to 38.00mm. Tolerance: +0.0630, -0.0130.Diameter: Over 38.00mm ~...
