Clamping Fixtures

FC07 - Engineers StudMaterial: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 22mm• MFR Part No. PT07-10050• Surface Finish Black Oxide

FC07 - Engineers StudMaterial: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 50mm• MFR Part No. PT07-10150• Surface Finish Black Oxide

FC07 - Engineers StudMaterial: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 38mm• MFR Part No. PT07-10100• Surface Finish Black Oxide

FC06 - T-Slot Nut (Milled)Material: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 22mm• MFR Part No. PT06-2220• Surface Finish Black Oxide

FC06 - T-Slot Nut (Milled)Material: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 17.7mm• MFR Part No. PT06-1816• Surface Finish Black Oxide

FC06 - T-Slot Nut (Milled)Material: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 15.8mm• MFR Part No. PT06-1614• Surface Finish Black Oxide

FC06 - T-Slot Nut (Milled)Material: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 13.8mm• MFR Part No. PT06-1412• Surface Finish Black Oxide

FC06 - T-Slot Nut (Milled)Material: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 11.8mm• MFR Part No. PT06-1210• Surface Finish Black Oxide

FC05 - Extension NutExtends the length of clamping studs.Material: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 60mm• MFR Part No...

FC05 - Extension NutExtends the length of clamping studs.Material: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 36mm• MFR Part No...

FC04 - Flanged NutMaterial: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 5mm• MFR Part No. PT04-1624• Surface Finish Black Oxide

FC04 - Flanged NutMaterial: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 4mm• MFR Part No. PT04-1422• Surface Finish Black Oxide

FC04 - Flanged NutMaterial: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 4mm• MFR Part No. PT04-1219• Surface Finish Black Oxide

FC04 - Flanged NutMaterial: Medium Carbon Steel.Hardness: HRC 30 - 35.Surface Finish: Black Oxide. • Material Carbon Steel• C 3mm• MFR Part No. PT04-1017• Surface Finish Black Oxide

FC02 - Serrated Ball EndPrecision swivel ball that can be used either as a contact bolt or rest pad. As contact pads these swivel ball units are ideal for evenly distributing clamping pressure on sloped or uneven surfaces.Material:Body - Medium Carbon...

Precision swivel ball that can be used either as a contact bolt or rest pad. As contact pads these swivel ball units are ideal for evenly distributing clamping pressure on sloped or uneven surfaces.Material:Body - Medium Carbon Steel.Ball - Through...

CC25 - Step ClampMaterial: Medium Carbon Steel.Hardness: HRC 32 - 38.Surface Finish: Black Oxide. • D 17mm• MFR Part No. CC2516150mm• A 150mm• B 38mm• C 22mm

CC25 - Step ClampMaterial: Medium Carbon Steel.Hardness: HRC 32 - 38.Surface Finish: Black Oxide. • D 17mm• MFR Part No. IND4251135G• A 100mm• B 38mm• C 19mm

CC25 - Step ClampMaterial: Medium Carbon Steel.Hardness: HRC 32 - 38.Surface Finish: Black Oxide. • D 15mm• MFR Part No. CC251463mm• A 63mm• B 25mm• C 13mm

CC25 - Step ClampMaterial: Medium Carbon Steel.Hardness: HRC 32 - 38.Surface Finish: Black Oxide. • D 15mm• MFR Part No. CC2514100mm• A 100mm• B 32mm• C 19mm

CC24 - Eccentric Cam LockMaterial: Medium Carbon Steel.Hardness: HRC 35.Surface Finish: Black Oxide. • D 23mm• MFR Part No. CC240416mm• A 38mm• B 16mm• C 12mm

CC24 - Eccentric Cam LockMaterial: Medium Carbon Steel.Hardness: HRC 35.Surface Finish: Black Oxide. • D 19mm• MFR Part No. CC240312mm• A 30mm• B 13.5mm• C 9mm

CC24 - Eccentric Cam LockMaterial: Medium Carbon Steel.Hardness: HRC 35.Surface Finish: Black Oxide. • D 14.3mm• MFR Part No. CC240210mm• A 26mm• B 11.8mm• C 8mm

CC21 - Swivel Rack ClampMaterial: Medium Carbon Steel/Steel Forging.Surface Finish: Black Oxide. • D 84mm• MFR Part No. CC21-0216mm• A 125mm• B 56mm• C 33mm

CC20 - Forged Swivel ClampMaterial: Medium Carbon Steel/Steel Forging.Heat Treated To: 32 - 38°.Surface Finish: Black Oxide. • MFR Part No...

CC19 - Forged Swivel ClampMaterial: Medium Carbon Steel/Steel Forging.Heat Treated To: 32 - 38°.Surface Finish: Black Oxide.M12-125 • MFR Part No. CC19-NC50mm• A 131mm• B 75mm• C 46...

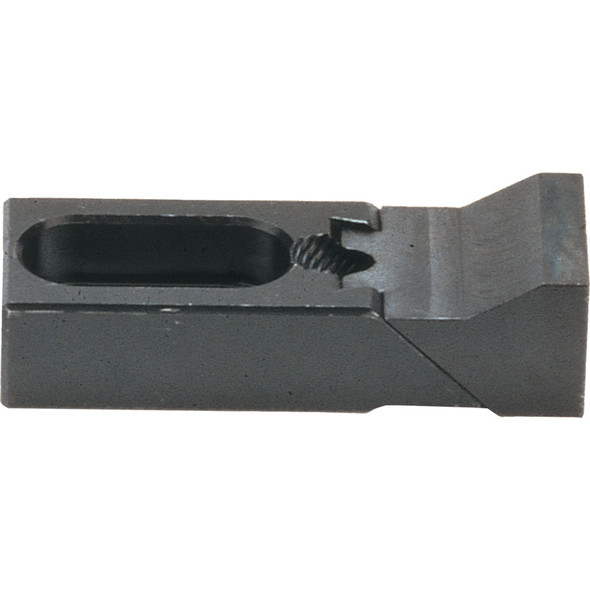

CC13 - Adjustable Stepped ClampLow profile clamp for holding thin parts and keeping top surfaces clear for machining.Material: Medium Carbon Steel.Heat Treated To: hrc 38.Surface Finish: Black Oxide.Jaws: Surface treated with high frequency quenching...

CC13 - Adjustable Stepped ClampLow profile clamp for holding thin parts and keeping top surfaces clear for machining.Material: Medium Carbon Steel.Heat Treated To: hrc 38.Surface Finish: Black Oxide.Jaws: Surface treated with high frequency quenching...

CC12 - Adjustable ClampLow profile clamp that keeps top surfaces clear for machining. Ideal for rough or finished parts.Material: Medium Carbon Steel.Hardness: Jaw Only: HRC 38.Surface Finish: Black Oxide.Jaws: Surface treated with high frequency...

CC12 - Adjustable ClampLow profile clamp that keeps top surfaces clear for machining. Ideal for rough or finished parts.Material: Medium Carbon Steel.Hardness: Jaw Only: HRC 38.Surface Finish: Black Oxide.Jaws: Surface treated with high frequency...

CC12 - Adjustable ClampLow profile clamp that keeps top surfaces clear for machining. Ideal for rough or finished parts.Material: Medium Carbon Steel.Hardness: Jaw Only: HRC 38.Surface Finish: Black Oxide.Jaws: Surface treated with high frequency...

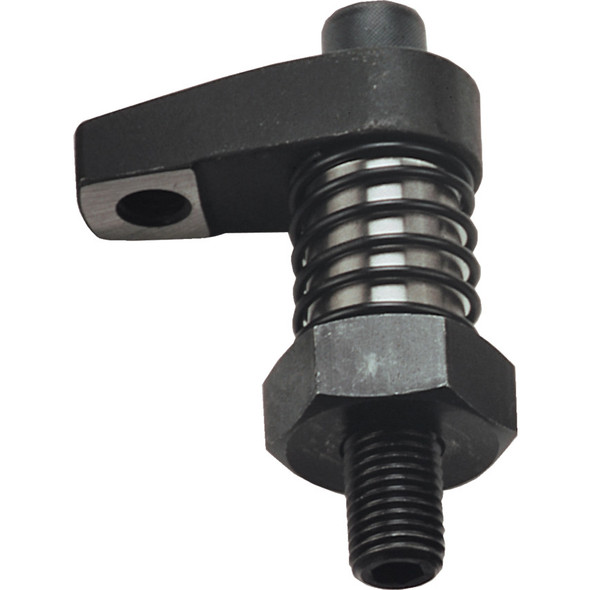

CC08 - Swing ClampA small clamp with good holding power, ideal for tight spaces, full swing away feature permits easy part loading.Material: Case Hardened Steel.Hardness: HRC 38 - 42.Surface Finish: Black Oxide. • D 45mm• MFR...

CC08 - Swing ClampA small clamp with good holding power, ideal for tight spaces, full swing away feature permits easy part loading.Material: Case Hardened Steel.Hardness: HRC 38 - 42.Surface Finish: Black Oxide. • D 45mm• MFR...

CC08 - Swing ClampA small clamp with good holding power, ideal for tight spaces, full swing away feature permits easy part loading.Material: Case Hardened Steel.Hardness: HRC 38 - 42.Surface Finish: Black Oxide. • D 40mm• MFR...

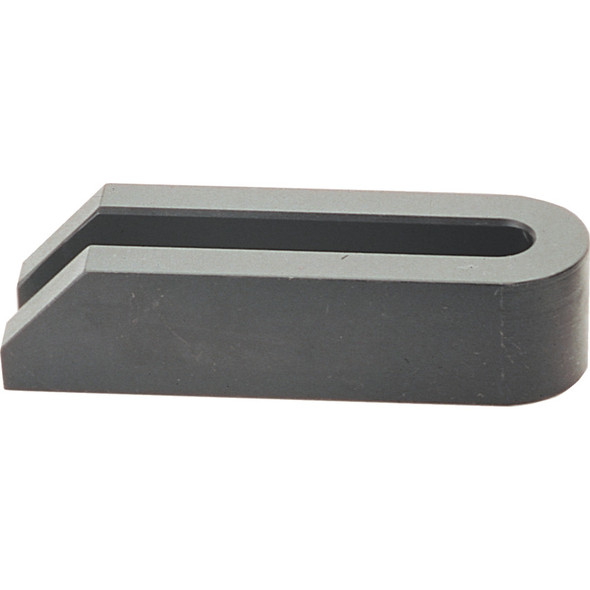

Material: medium carbon steel.Hardness: HRC 32 - 38.Surface finish: black oxide. • D 48mm• MFR Part No. CC070212mm• A 80mm• B 32mm• C 22mm

CC06 - Tapped End Plain ClampFor use with various knobs, jack screws, clamps and pads.Material: Medium Carbon Steel.Heat Treated To: HRC 32 - 38.Surface Finish: Black Oxide. • D 40mm• MFR Part No...

CC06 - Tapped End Plain ClampFor use with various knobs, jack screws, clamps and pads.Material: Medium Carbon Steel.Heat Treated To: HRC 32 - 38.Surface Finish: Black Oxide. • D 48mm• MFR Part No...

CC06 - Tapped End Plain ClampFor use with various knobs, jack screws, clamps and pads.Material: Medium Carbon Steel.Heat Treated To: HRC 32 - 38.Surface Finish: Black Oxide. • D 32mm• MFR Part No...

CC06 - Tapped End Plain ClampFor use with various knobs, jack screws, clamps and pads.Material: Medium Carbon Steel.Heat Treated To: HRC 32 - 38.Surface Finish: Black Oxide. • D 112mm• MFR Part No...

CC06 - Tapped End Plain ClampFor use with various knobs, jack screws, clamps and pads.Material: Medium Carbon Steel.Heat Treated To: HRC 32 - 38.Surface Finish: Black Oxide. • D 82mm• MFR Part No...
