EZB002

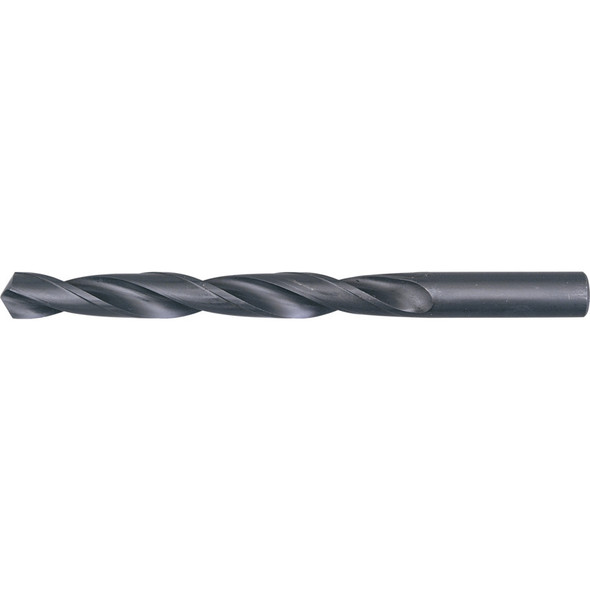

Series J100 - MetricGeneral purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10° - 20°,...

Metric.Used to produce a close tolerance surface finish by enlarging pre-drilled holes to a finished size to allow the fitting of hardened and ground taper pins in the building of jigs, fixtures and dies.Manufactured to BS 328-4. • Taper Shank...

Designed for close tolerance hole location. Suitable for continuous production on aluminium, plastics, free cutting steels, cast iron, titanium and some aerospace materials. The stability of carbide makes the tool more rigid and less likely to deflect,...

Series E100 HSS Straight Shank Extra Length DrillsMetricGeneral-purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard,...

Metric SeriesDesigned with spiral flutes and various lengths and forms to give high quality centre holes that suit most applications. 60° inclusive angle.Manufactured to BS 328 : Part 2 : 1986, DIN 333A, ISO 866, ISO 2540, ISO 2541...

Series E100 HSS Straight Shank Extra Length DrillsMetricGeneral-purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard,...

Used to produce a close tolerance surface finish by enlarging pre-drilled holes to a finished size. Manufactured from HSS with a 45 bevelled head. Manufactured to BS 328-4.TOLERANCES (to H7):Diameter: ~ up to 3.00. Tolerance: +0.008, -0.007.Diameter:...

Series T100 HSS Taper Shank Drills - MetricTo drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°, helix angle: normal, relief angle: normal, tolerance...

Metric.Used to produce a close tolerance surface finish by hand in almost any environment i.e. on site or in a workshop. Manufactured to BS 328 : Part 4 : 1990 and DIN 206B.METRIC TOLERANCES:Diameter: ~ up to 3.00. Tolerance: +0.008, -0.007.Diameter:...

Series S100 HSS Straight Shank Stub DrillsMetric SizesGeneral purpose drills for use on automatics and turret lathes. Suitable for drilling steels, cast iron, alloy steel and malleable cast iron. Point angle: 118°, helix angle: normal, web thickness:...

Left hand spiral flute, right hand cutting. Manufactured to BS 328-4.METRIC TOLERANCES (to H7):Diameter: ~ up to 3.00. Tolerance: High +0.008, Low -0.004.Diameter: Over 3.00 ~ up to 6.00. Tolerance: High +0.010, Low -0.005.Diameter: Over 6.00 ~ up to 10...

Series L100 HSS Straight Shank Long Series DrillsMetricGeneral purpose drills which are designed to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°,...

Series J100 - MetricGeneral purpose drills for steels, cast steel, grey cast iron, malleable cast iron, nickel brass, aluminium alloy and graphite. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: 10° - 20°,...

Series L100 HSS Straight Shank Long Series DrillsBright Finish - MetricGeneral purpose drills to drill steels with tensile strength up to 1,000N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°, helix...

Series J400 HSS Drill BlanksMetricJobber length blank hardened and ground all over. Accurately ground without back taper. Diameter tolerance: h8. Manufactured to DIN 338. • Standards Met DIN 338• Overall...

MetricManufactured to BS 328 : Part 2 : 1986, DIN 333, ISO 2540. • Countersink Angle 60°• Trade Size 10• Radius 5.3mm• Cutting Style Bell• Body Diameter 10mm

Carbide Straight Shank Stub DrillsMetricFor drilling into steel, cast steel, cast iron, chilled cast iron, malleable cast iron, non-ferrous materials and abrasive plastic.Point angle: 118°, helix angle: 30°, tolerance of diameter: h7, tolerance...

Series J102 - MetricGeneral purpose drills for drilling a wide variety of metallic and non-metallic materials.Point angle: 118°. Tolerance of diameter: h7. Tolerance of shank: h6. Supply unit. All diameters - 1 pce.Manufacturing Standard: BS 328, DIN...

HSS 90° Straight Shank Spotting DrillsSeries C520Special drill for accurate and fast spotting on NC machines, jig drills and other capital-intensive boring machines. For countersinking and chamfering of tapping holes in one operation. Only suitable...

HSS 120° Straight Shank Spotting DrillsSeries C530Special drill for accurate and fast spotting on NC machines, jig drills and other capital-intensive boring machines. For countersinking and chamfering of tapping holes in one operation. Only suitable...

HSS-E 90° Straight Shank Single Hole Countersink• Metric• HSSE-Co• 90°• Manufactured to BS 328 : Part 5:1983• For deburring and chamfering • Standards Met BS 328 : Part 5• Number of...

ISO 2284For use in diestocks to produce external screw threads. • Thread Direction Right Hand• Material High Speed Steel• Thread Standard BSPT• Thread Size 1/8" x 28• Dimensions...

BS 1127For use in diestocks to produce external screw threads. • Thread Standard BSW• Material High Speed Steel• Outside Diameter 13/16in.• Class of Fit 6g• Thread Size 1/8" x 40

ISO 529 - Straight Flute Individual Sizes - Taper.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous...

HSS Ground Thread Straight Flute BSW (British Standard Whitworth) Tap SetSherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as...

ISO 529 - Straight Flute Individual Sizes - Second.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous...

ISO 529 - Straight Flute Individual Sizes - PlugThread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous...

IS0 529 - Straight Flute - Plug • Thread Size 1/8"• Class of Fit 6H• Square Width 6.3mm• Number of Flutes 4• Thread Direction Right Hand

IS0 529 - Straight Flute - Plug • Thread Size 1/8"• Class of Fit 6H• Square Width 6.3mm• Number of Flutes 4• Thread Direction Right Hand

IS0 529 - Straight Flute - Plug • Thread Size 1/8"• Class of Fit 6H• Square Width 6.3mm• Number of Flutes 4• Thread Direction Right Hand

BS 1127.For use in diestocks to produce external screw threads. • Class of Fit 6g• Thread Size 1/8" x 28• Thread Standard BSPF• Thread Direction Right Hand

IS0 529 - Straight Flute Individual Sizes - Taper.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous...

IS0 529 - Straight Flute - Sets of Three.1 each, taper, second and plug lead.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast...

IS0 529 - Straight Flute Individual Sizes - Plug.Thread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous...

IS0 529 - Spiral Point/Gun Nose • Dimensions Standard ISO 529• Shank Diameter 8mm• Square Width 6.3mm• Material Grade M2• Thread Direction Right Hand

IS0 529 - Spiral Flute • Dimensions Standard ISO 529• Shank Diameter 8mm• Square Width 6.3mm• Material Grade M2• Thread Direction Right Hand

For use in diestocks to produce external screw threads. • Material High Speed Steel• Outside Diameter  1in• Thread Size 1/8" x 27• Thickness 3/8in.• Class of Fit 2A

ANSI 94.9Straight Flute • Thread Direction Right Hand• Material Application Aluminium• Material Grade M2• Overall Length 54mm• Pitch 27

ANSI 94.9 - Straight Flute - PlugThread Forms are Class 2 medium fit tolerance.Sherwood HSS Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as...

For the production of high precision concentrically centred countersinks in most metals where pilot holes have been pre-drilled. Shank diameter: 3/16"Inclined Angles for Countersunk Socket Head ScrewsThread Series: Metric. Standard: BS EN ISO 10642...
